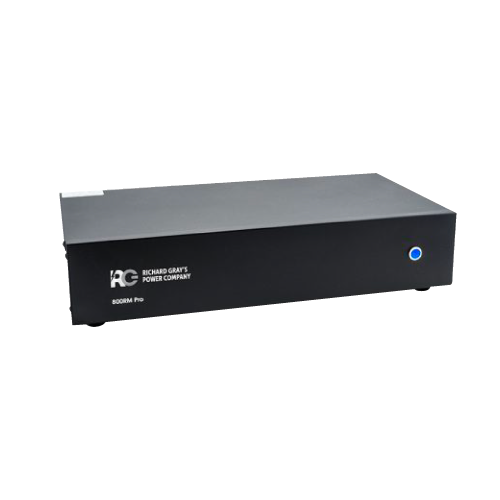

RGPC 800 RM Pro
Parallel Power Delivery for Load Impedance Matching
The RGPC 800 RM Pro is designed for installations where the ratio of space/performance is at premium. Its Parallel Delivery Choke Technology is specifically designed to fit into a 2U rack space. With four duplex outlets on the back, it is capable to power most mid-sized home theater systems. To receive the maximum performances install the RGPC 800 RM Pro as close as possible to the AV equipment.
The RGPC 800 RM Pro, utilizes Balanced Surge Protection Design (SPD) to ensure Bidirectional Protection and Reduced Ground Interference.
Features & Benefits
High current on demand
Balanced AC surge protection
8 5-20R outlets
Resettable circuit breaker
Compatible with UL1449 3rd edition for Type 3 locations
Applications
All AV equipment
Midsized home theaters
Installations with multiple circuits
Home automation
Home integration
For crisp and flawless AV experience
You'll See and Hear the Difference
As power moves through your home, the signal gets polluted by everything drawing power. A degraded signal means your picture and sound quality are also degraded. Our unique, patented engineering balances and cleans the power, minimizing signal loss and optimizing audio-visual performance.
Specifications
| Specifications | 800 RM Pro 120/120 | 800 RM Pro 240/240 |
|---|---|---|
| Dimensions (WHD) | 17 x 3.5 x 11 | 17 x 3.5 x 11 |
| Net weight | 32 lbs | 32 lbs |
| Rack Mountable | Yes, rack ears included | Yes, rack ears included |
| Power Cord Low Impedance (detachable) |
6 ft, 12 AWG, NEMA 5-15P |
6 ft, 12 AWG, Euro Schuko Plug |
| Outlet | 8 5-20R | 8 5-20R |
| Input Voltage | 120 VAC | 240 VAC |
| Output Voltage | 120 VAC | 240 VAC |
| Frequency | 60 HZ | 50 HZ |
| Output Power | 12 A (1,440 Watts) | 12 A (2,880 Watts) |
| Technology | Parallel Power Delivery | Parallel Power Delivery |
| Indicator Light | Blue LED | Blue LED |
| AC Surge Protection (type 3 locations) | Balanced | Balanced |
| Efficiency | 99% | 99% |
| Cooling | Convectional | Convectional |
| Storage Temperature | -40° C to 85° C | -40° C to 85° C |
| Operating Temperature | -40° C to 85° C | -40° C to 85° C |
